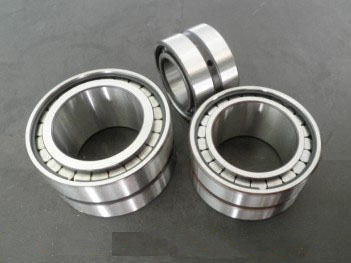

德国INA轴承——满装圆柱滚子轴承SL18系列 |
|
| 产品分类：进口轴承 | 查看：次 | ||
| 产品价格：面议 | ||
| 咨询电话：0571-82860622 张先生 | ||
| 即时交谈：hztxjd@163.com |
||
Details详细信息
轴承特征
SL18 系列满装圆柱滚子轴承，为无密封轴承，外圈带有一个挡边，有油沟及三个润滑孔。内圈带有三个挡边。可以作一个方向的轴向定位。
外圈在挡边的另一侧装有一个固定环,以保持轴承一体.特别需要内圈也可以加工3个润滑孔.有时可以根据客户不同的使用条件要求内圈上也带3个注油孔,以方便注油.此类可以用油润滑或者脂润滑.SL1850系列的轴承转速要明显高于SL0450系列,滚动体也要比同类型号的要大,所以载荷也要适当的大.由于此类轴承没有密封圈,属于开式轴承,使用环境受到限制,不能用在恶劣及粉尘多的环境下.
附注:此类轴承有时根据使用条件可以需要高温回火即S2或S3高温回火,基于此需要配合大的径向游隙即C3或者更大的游隙.
| Semi-locating,full complement ,cylindrical roller bearing | ||||||||||
|
single row,semi-locating |
double row,semi-locating |
Mass |
Dimensions |
basic load rating | ||||||
|
INA ref. |
SKF ref. |
INA ref. |
SKF ref. |
KG |
d |
D |
B |
S |
dyn. |
stat. |
|
SL183004 |
NCF3004CV |
|
|
0.11 |
20 |
42 |
16 |
1.5 |
30.5 |
26.5 |
|
SL182204 |
NCF2204V |
|
|
0.16 |
20 |
47 |
18 |
1 |
45.5 |
37.5 |
|
|
|
SL185004 |
NNCF5004V |
0.2 |
20 |
42 |
30 |
1 |
53 |
53 |
|
SL183005 |
NCF3005CV |
|
|
0.12 |
25 |
47 |
16 |
1.5 |
35 |
32.5 |
|
SL182205 |
NCF2205V |
|
|
0.18 |
25 |
52 |
18 |
1 |
51 |
45 |
|
SL192305 |
NJG2305VH |
|
|
0.37 |
25 |
62 |
24 |
2 |
73 |
60 |
|
|
|
SL185005 |
NNCF5005V |
0.23 |
25 |
47 |
30 |
1 |
60 |
65 |
|
SL183006 |
NCF3006CV |
|
|
0.2 |
30 |
55 |
19 |
2 |
45 |
43 |
|
SL182206 |
NCF2206V |
|
|
0.3 |
30 |
62 |
20 |
1 |
70 |
65 |
|
SL192306 |
NJG2306VH |
|
|
0.56 |
30 |
72 |
27 |
2 |
100 |
88 |
|
|
|
SL185006 |
NNCF5006V |
0.35 |
30 |
55 |
34 |
1.5 |
78 |
84 |
|
SL183007 |
NCF3007CV |
|
|
0.26 |
35 |
62 |
20 |
2 |
55 |
55 |
|
SL182207 |
NCF2207V |
|
|
0.44 |
35 |
72 |
23 |
1 |
88 |
79 |
|
SL192307 |
NJG2307VH |
|
|
0.74 |
35 |
80 |
31 |
2 |
126 |
112 |
|
|
|
SL185007 |
NNCF5007V |
0.46 |
35 |
62 |
36 |
1.5 |
94 |
109 |
|
SL183008 |
NCF3008CV |
|
|
0.31 |
40 |
68 |
21 |
2 |
66 |
68 |
|
SL182208 |
NCF2208V |
|
|
0.55 |
40 |
80 |
23 |
1 |
97 |
93 |
|
SL192308 |
NJG2308VH |
|
|
1.01 |
40 |
90 |
33 |
2 |
170 |
156 |
|
|
|
SL185008 |
NNCF5008V |
0.56 |
40 |
68 |
38 |
1.5 |
113 |
136 |
|
SL183009 |
NCF3009CV |
|
|
0.4 |
45 |
75 |
23 |
2 |
70 |
76 |
|
SL182209 |
NCF2209V |
|
|
0.59 |
45 |
85 |
23 |
1 |
101 |
99 |
|
SL192309 |
NJG2309VH |
|
|
1.37 |
45 |
100 |
36 |
3 |
181 |
169 |
|
|
|
SL185009 |
NNCF5009V |
0.71 |
45 |
75 |
40 |
1.5 |
120 |
151 |
|
SL183010 |
NCF3010CV |
|
|
0.43 |
50 |
80 |
23 |
2 |
88 |
96 |
|
SL182210 |
NCF2210V |
|
|
0.64 |
50 |
90 |
23 |
1 |
109 |
113 |
|
SL192310 |
NJG2310VH |
|
|
1.81 |
50 |
110 |
40 |
3 |
232 |
219 |
|
|
|
SL185010 |
NNCF5010V |
0.76 |
50 |
80 |
40 |
1.5 |
151 |
191 |
|
SL183011 |
NCF3011CV |
|
|
0.64 |
55 |
90 |
26 |
2 |
120 |
136 |
|
SL182211 |
NCF2211V |
|
|
0.87 |
55 |
100 |
25 |
1 |
140 |
150 |
|
SL192311 |
NJG2311VH |
|
|
2.28 |
55 |
120 |
43 |
3 |
270 |
255 |
|
|
|
SL185011 |
NNCF5011V |
1.16 |
55 |
90 |
46 |
1.5 |
206 |
275 |
|
SL182912 |
NCF2912V |
|
|
0.29 |
60 |
85 |
16 |
1 |
63 |
78 |
|
SL183012 |
NCF3012CV |
|
|
0.69 |
60 |
95 |
26 |
2 |
123 |
145 |
|
SL182212 |
NCF2212V |
|
|
1.18 |
60 |
110 |
28 |
1.5 |
169 |
180 |
|
SL192312 |
NJG2312VH |
|
|
2.88 |
60 |
130 |
46 |
3 |
285 |
280 |
|
|
|
SL185012 |
NNCF5012V |
1.24 |
60 |
95 |
46 |
1.5 |
212 |
290 |
|
SL182913 |
NCF2913V |
|
|
0.31 |
65 |
90 |
16 |
1 |
67 |
86 |
|
SL183013 |
NCF3013CV |
|
|
0.73 |
65 |
100 |
26 |
2 |
130 |
159 |
|
SL182213 |
NCF2213V |
|
|
1.57 |
65 |
120 |
31 |
1.5 |
198 |
214 |
|
SL192313 |
NJG2313VH |
|
|
3.52 |
65 |
140 |
48 |
3.5 |
350 |
355 |
|
|
|
SL185013 |
NNCF5013V |
1.32 |
65 |
100 |
46 |
1.5 |
223 |
320 |
|
SL182914 |
NCF2914V |
|
|
0.49 |
70 |
100 |
19 |
1 |
88 |
114 |
|
SL183014 |
NCF3014CV |
|
|
1.02 |
70 |
110 |
30 |
3 |
153 |
`76 |
|
SL182214 |
NCF2214V |
|
|
1.66 |
70 |
125 |
31 |
1.5 |
184 |
117 |
|
SL192314 |
NJG2314VH |
|
|
4.33 |
70 |
150 |
51 |
3.5 |
385 |
390 |
|
|
|
SL185014 |
NNCF5014V |
1.85 |
70 |
110 |
54 |
3 |
265 |
355 |
|
SL182915 |
NCF2915V |
|
|
0.52 |
75 |
105 |
10 |
1 |
91 |
121 |
|
SL183015 |
NCF3015CV |
|
|
1.06 |
75 |
115 |
30 |
3 |
162 |
194 |
|
SL182215 |
NCF2215V |
|
|
1.75 |
75 |
130 |
31 |
1.5 |
190 |
241 |
|
SL192315 |
NJG2315VH |
|
|
5.3 |
75 |
160 |
55 |
3.5 |
460 |
465 |
Dimension(b)
| Semi-locating,full complement,cylindrical roller bearing | ||||||||||
|
single row,semi-locating |
double row,semi-locating |
MASS |
Dimensions |
basic load ratings | ||||||
|
INA.REF |
SKF.REF |
INA.REF |
SKF.REF |
KG |
d |
D |
B |
S |
dyn.(KN) |
stat.(KN) |
|
SL185015 |
NNCF5015V |
1.93 |
75 |
115 |
54 |
3 |
275 |
390 | ||
|
SL182916 |
NCF2916V |
|
|
0.55 |
80 |
110 |
19 |
1 |
94 |
129 |
|
SL183016 |
NCF3016CV |
|
|
1.43 |
80 |
125 |
34 |
4 |
173 |
225 |
|
SL182216 |
NCF2216V |
|
|
2.15 |
80 |
140 |
33 |
1.5 |
226 |
285 |
|
SL192316 |
NJG2316VH |
|
|
6.32 |
80 |
170 |
58 |
3.5 |
540 |
560 |
|
|
|
SL185016 |
NNCF5016V |
2.59 |
80 |
125 |
60 |
3.5 |
295 |
450 |
|
SL182917 |
NCF2917V |
|
|
0.81 |
85 |
120 |
22 |
1 |
118 |
162 |
|
SL183017 |
NCF3017CV |
|
|
1.51 |
85 |
130 |
34 |
4 |
178 |
237 |
|
SL182217 |
NCF2217V |
|
|
2.74 |
85 |
150 |
36 |
1.5 |
255 |
325 |
|
SL192317 |
NJG2317VH |
|
|
7.32 |
85 |
180 |
60 |
4 |
570 |
620 |
|
|
|
SL185017 |
NNCF5017V |
2.72 |
85 |
130 |
60 |
3.5 |
305 |
475 |
|
SL182918 |
NCF2918V |
|
|
0.84 |
90 |
125 |
22 |
1 |
122 |
172 |
|
SL183018 |
NCF3018CV |
|
|
1.97 |
90 |
140 |
37 |
4 |
208 |
280 |
|
SL182218 |
NCF2218V |
|
|
3.48 |
90 |
160 |
40 |
2.5 |
290 |
370 |
|
SL192318 |
NJG2318VH |
|
|
8.83 |
90 |
190 |
64 |
4 |
620 |
660 |
|
|
|
SL185018 |
NNCF5018V |
3.62 |
90 |
140 |
67 |
4 |
355 |
560 |
|
SL182919 |
NCF2919V |
|
|
0.86 |
95 |
130 |
22 |
1 |
132 |
179 |
|
SL182219 |
NCF2219V |
|
|
4.17 |
95 |
170 |
43 |
2.5 |
340 |
435 |
|
SL192319 |
NJG2319VH |
|
|
10.2 |
95 |
200 |
67 |
4 |
650 |
720 |
|
SL182920 |
NCF2920V |
|
|
1.14 |
100 |
140 |
24 |
1.5 |
152 |
206 |
|
SL183020 |
NCF3020CV |
|
|
2.15 |
100 |
150 |
37 |
4 |
219 |
310 |
|
SL182220 |
NCF2220V |
|
|
5.13 |
100 |
180 |
46 |
2.5 |
395 |
520 |
|
SL192320 |
NJG2320VH |
|
|
13 |
100 |
215 |
73 |
4 |
790 |
860 |
|
|
|
SL185020 |
NNCF5020V |
3.94 |
100 |
150 |
67 |
4 |
375 |
620 |
|
SL182922 |
NCF2922V |
|
|
1.23 |
110 |
150 |
24 |
1.5 |
155 |
220 |
|
SL183022 |
NCF3022CV |
|
|
3.5 |
110 |
170 |
45 |
5.5 |
285 |
395 |
|
SL182222 |
NCF2222V |
|
|
7.24 |
110 |
200 |
53 |
4 |
455 |
590 |
|
SL192322 |
NJG2322VH |
|
|
17 |
110 |
240 |
80 |
5 |
950 |
980 |
|
|
|
SL185022 |
NNCF5022V |
6.32 |
110 |
170 |
80 |
5 |
490 |
790 |
|
SL182924 |
NCF2924V |
|
|
1.73 |
120 |
165 |
27 |
1.5 |
199 |
295 |
|
SL183024 |
NCF3024CV |
|
|
3.8 |
120 |
180 |
46 |
5.5 |
300 |
435 |
|
SL182224 |
NCF2224V |
|
|
9.08 |
120 |
215 |
58 |
4 |
540 |
730 |
|
SL192324 |
NJG2324VH |
|
|
22.3 |
120 |
260 |
86 |
5 |
1130 |
1240 |
|
|
|
SL185024 |
NNCF5024V |
6.77 |
120 |
180 |
80 |
5 |
520 |
870 |
|
SL182926 |
NCF2926V |
|
|
2.33 |
130 |
180 |
30 |
2 |
238 |
355 |
|
SL183026 |
NCF3026CV |
|
|
5.65 |
130 |
200 |
52 |
5.5 |
435 |
620 |
|
SL182226 |
NCF2226V |
|
|
11.25 |
130 |
230 |
64 |
5 |
630 |
860 |
|
|
|
SL185026 |
NNCF5026V |
10.2 |
130 |
200 |
95 |
5 |
740 |
1230 |
|
SL182928 |
NCF2928V |
|
|
2.42 |
140 |
190 |
30 |
2 |
260 |
385 |
|
SL183028 |
NCF3028CV |
|
|
6.04 |
140 |
210 |
53 |
5.5 |
455 |
680 |
|
SL182228 |
NCF2228V |
|
|
14.47 |
140 |
250 |
68 |
5 |
720 |
1020 |
|
|
|
SL185028 |
NNCF5028V |
11.1 |
140 |
210 |
95 |
5 |
780 |
1360 |
|
SL182930 |
NCF2930V |
|
|
3.77 |
150 |
210 |
36 |
2.5 |
340 |
490 |
|
SL183030 |
NCF3030CV |
|
|
7.33 |
150 |
225 |
56 |
7 |
480 |
710 |
|
SL182230 |
NCF2230V |
|
|
18.43 |
150 |
270 |
73 |
6 |
830 |
1180 |
|
|
|
SL185030 |
NNCF5030V |
13.3 |
150 |
225 |
100 |
6 |
810 |
1390 |
|
SL182932 |
NCF2932V |
|
|
4 |
160 |
220 |
36 |
2.5 |
350 |
520 |
|
SL183032 |
NCF3032CV |
|
|
8.8 |
160 |
240 |
60 |
7 |
550 |
820 |
|
SL182232 |
NCF2232V |
|
|
23 |
160 |
290 |
80 |
6 |
1030 |
1490 |
|
|
|
SL185032 |
NNCF5032V |
16.2 |
160 |
240 |
109 |
6 |
952 |
1600 |
供应德国INA轴承——满装圆柱滚子轴承SL18系列，欢迎来电咨询德国INA轴承——满装圆柱滚子轴承SL18系列价格！
